Why might an EV owner choose a NEMA 14-50 Outlet?

A NEMA 14-50 Outlet can support a removable charging unit, which lets the owner disconnect or replace the charger without changing the receptacle connection.

Glossary

What Is a NEMA 14-50 Outlet?

A NEMA 14-50 Outlet is a receptacle designed for equipment that uses a matching NEMA 14-50 plug. The outlet has two energized slots, a neutral slot, and a grounding connection. Electric vehicle charging equipment commonly uses this configuration, although compatibility depends on the charger plug and the vehicle’s charging system.

Local relevance: Miami’s humid, salt-air coastal climate can accelerate corrosion at exposed electrical connections, so outlet condition and enclosure protection deserve attention during installation.

Quick Facts About NEMA 14-50 Outlet

Key Takeaways About NEMA 14-50 Outlet

Its slot pattern includes two energized slots, neutral, and ground.
A matching plug and suitable circuit must serve the charging equipment.
A NEMA 14-50 Outlet is not the same as every EV charger connection.

How NEMA 14-50 Outlet Works

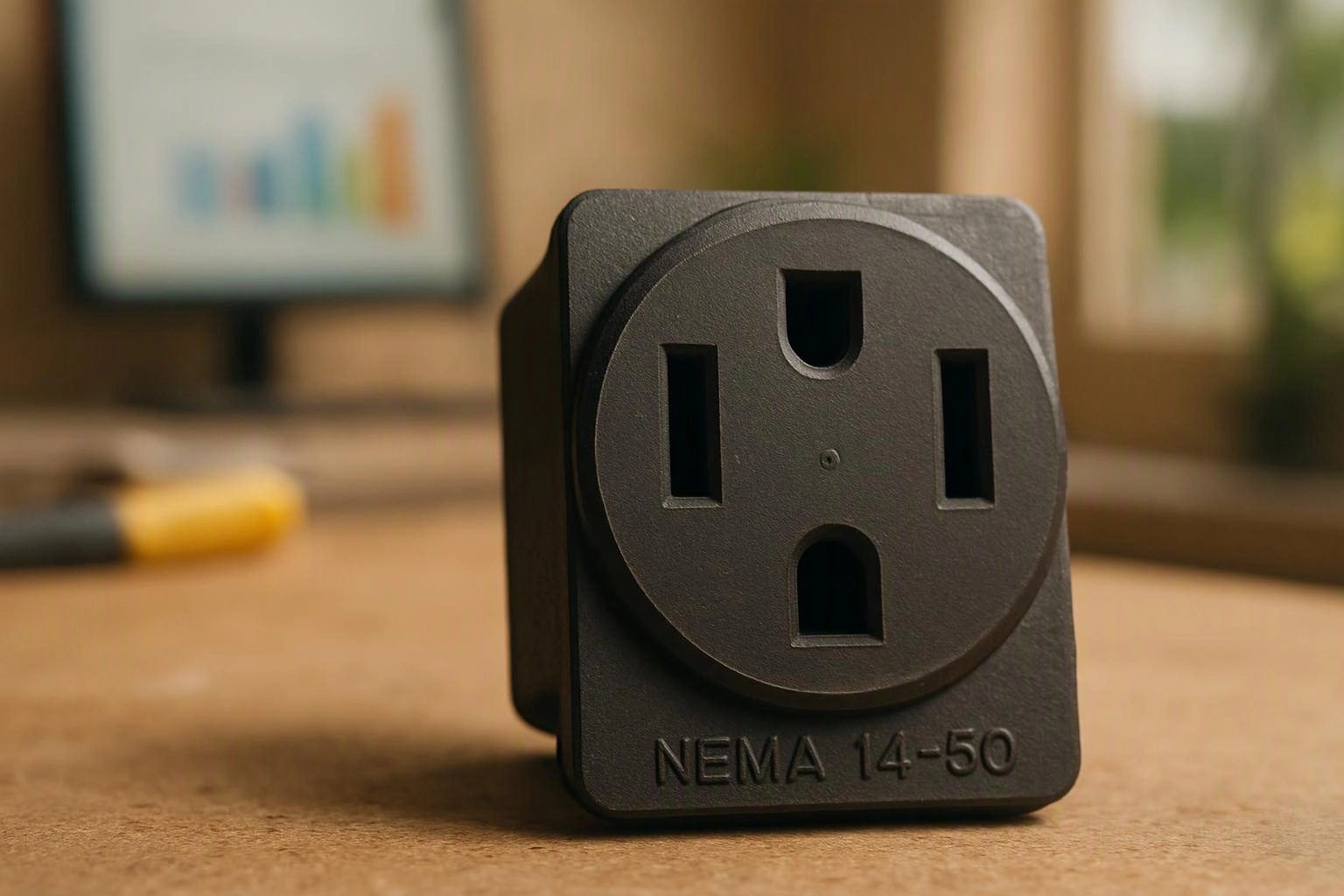

A black electrical outlet adapter labeled NEMA 14-50 sits on a wooden table with a blurred screen behind it

A NEMA 14-50 Outlet connects compatible equipment to two energized conductors, a neutral conductor, and a grounding path. Its physical slot arrangement accepts only equipment with a matching plug. The outlet itself does not control charging speed or convert electrical power.

Related glossary terms: Level 2 Charging, EV Load Management, Branch Circuit.

A plug-in Level 2 Charging unit uses the outlet as its connection point, then manages power through its own controls and cable. The vehicle and charging unit must support the same connection method. During installation, the circuit, conductors, outlet terminals, enclosure, and available panel capacity are checked as one system.

Two men in caps inspect a large electrical plug at a wall outlet indoors

From the Earth Electric team

When we handle a NEMA 14-50 Outlet for EV charger installation, we check the existing electrical equipment, circuit path, terminations, and outlet condition. Our team also confirms that the charging equipment has a matching plug and that the installation fits the home’s available electrical capacity.

NEMA 14-50 Outlet in Practice: A Real-World Example

For a Miami home with a plug-in EV charger, the installation may place a NEMA 14-50 Outlet near the parking area. The charger plugs into the receptacle, while the vehicle receives power through the charger’s cable and controls.
