What is Arc-Fault Circuit Interrupter?

Understanding Arc-Fault Circuit Interrupter

Arc-Fault Circuit Interrupter, often called an AFCI, protects circuits. It looks for unplanned electrical arcing. An arc forms when electricity jumps across a gap. This often happens at a loose terminal, damaged wire, crushed cable, or failing connection. The arc can create intense heat. This can happen even when current stays below a standard breaker’s trip level.

Related glossary terms: Ground-Fault Circuit Interrupter, Branch Circuit, Overcurrent Protection.

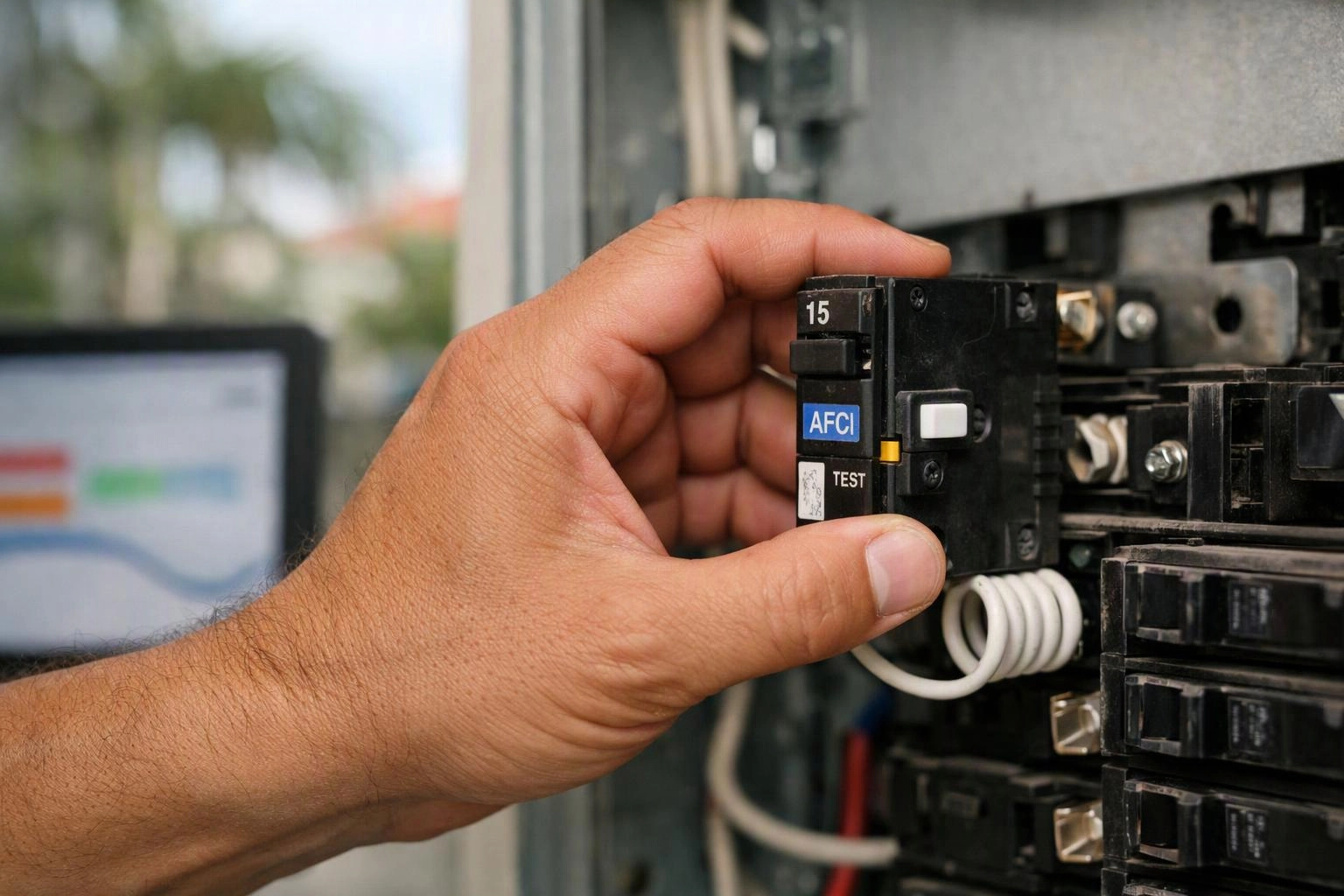

An AFCI compares current patterns with patterns linked to dangerous arcing. If it finds a dangerous pattern, it opens the circuit. This stops the flow of electricity. AFCI protection may appear as a circuit breaker in an electrical panel. It may also appear as a receptacle in a room. Combination-type AFCI breakers detect line-to-line arcing. They also detect arcing along a damaged conductor.

How Arc-Fault Circuit Interrupter Works, Is Measured, or Is Used?

The main parts of an AFCI include a sensing circuit, an electronic decision system, and an interrupting mechanism. The sensing circuit watches current changes over time. It doesn't check only the total amperage. The device separates normal events from irregular patterns. A motor starting is one normal event. Irregular patterns may show a damaged branch circuit or loose connection.

An AFCI isn't measured by one simple trip number. This differs from an overcurrent breaker. Its performance depends on arc recognition and quick circuit interruption. Installation also depends on the circuit design and breaker compatibility. It depends on neutral connections and conductor condition. It also depends on local authority requirements. A basic use and test process includes these steps.

• Identify the circuit protected by the AFCI.
• Press the test button and confirm that power turns off.
• Reset the device according to its markings.
• Investigate repeated trips instead of bypassing the protection.

Why Arc-Fault Circuit Interrupter Matters?

Arc-Fault Circuit Interrupter protection addresses a fire risk. Ordinary overcurrent protection may miss this risk. A standard breaker mainly responds when current exceeds its rating. This can happen during an overload or short circuit. A damaged conductor can create an arc with lower current. The standard breaker may stay closed while the connection keeps heating.

Correct AFCI protection supports a home's electrical safety design. It also gives an electrician a useful warning when a circuit trips. This helps when no clear overload appears. A trip doesn't prove that the AFCI itself is defective. The cause may be a damaged cable, loose receptacle, moisture, appliance, or neutral connection problem.

When Arc-Fault Circuit Interrupter Matters Most?

Arc-Fault Circuit Interrupter requirements matter during new construction and remodeling. They also matter during panel replacement and branch circuit changes. The National Electrical Code lists locations requiring AFCI protection. The local jurisdiction adopts the enforceable code rule. Miami-Dade County and other Florida jurisdictions may apply these code rules. They may also use local permitting procedures.

AFCIs also matter after signs of wiring damage appear. Watch for burning smells, buzzing, warm receptacles, and discoloration. Also watch for flickering lights and repeated trips. Don't replace an AFCI with a standard breaker to stop trips. A qualified electrical inspection can test the device. It can check conductor connections and find needed circuit repairs or replacement.
